Looking for screened, vented for your Ford Transit van? The CRL FW293R Ford Transit Passenger Side Sliding Door Vented Window will bring light and air into your vehicle, combining a large upper panel with a screened, crank-out opening bottom panel for ventilation.

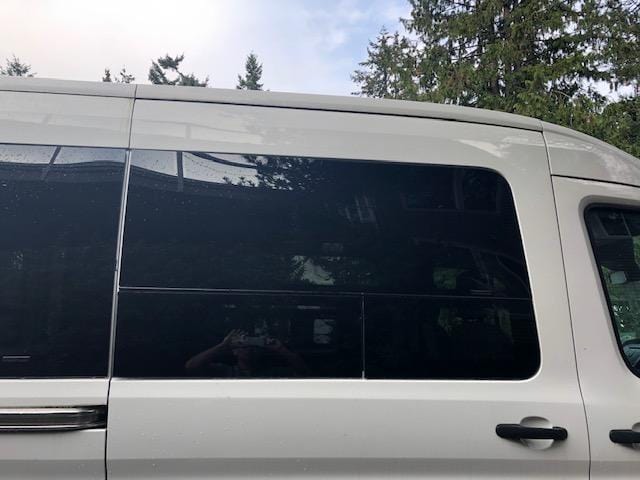

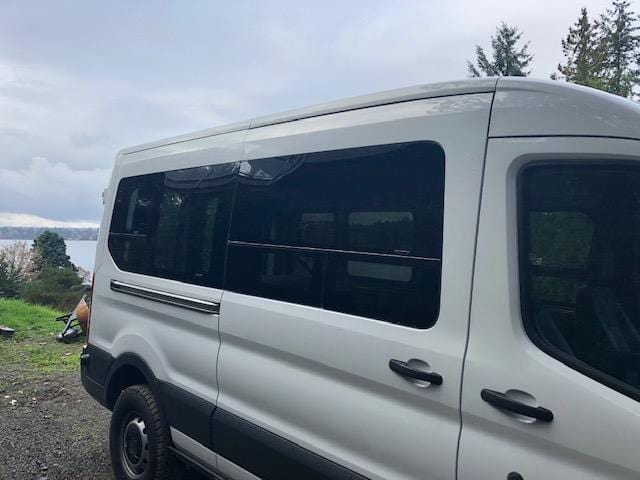

These windows are designed for a new installation on a Ford Transit cargo van, they are not intended to replace existing factory glass. Please see example image at the bottom of this page.

Pick up your order and save! Choose the pickup location close to you to remove CR Laurence product shipping fees at checkout and get your van window in person. We'll email complete pickup instructions once it's ready (lead times depend on current availability).

Please read important installation notes section at bottom of page.

Key Features: CRL Ford Transit 130/148" WB Passenger Side Sliding Door Vented Window (FW293R)

This CRL Ford Transit 130/148"WB Passenger Side Sliding Door Vented Window (FW293R):

• Fits 2015+ 130/148"/148"EXT WB models
• Has a 28% dark gray
• Has a bottom crank-out vented panel with a detachable screen
• Has a clamp (trim) ring, so does not require an adhesive, primer, or sealant
• Uses  for maximum safety and strength
• Is tested to and safety standards
• Requires template to be made for cut hole(see bottom of page)

When mounting these windows in your van:

• If you can, cut the openings with a center-blade shear, rather than a jigsaw - this will cut an opening that may be less ragged, produce less debris, and produce less hammering on the sheet metal of the van.
• Make sure you paint the cut edges of the new window opening - if you skip this step, moisture can rust out the edges of the window mounting.
• IMPORTANT: these windows clamp in place - ensure you do not use power tools on the inner trim ring screws, use hand tools to tighten these.

Specifications: CRL Ford Transit 130/148" WB Passenger Side Sliding Door Vented Window (FW293R)

Video: CRL Installing a Ford Transit Window (FW293R)

Here are a couple of videos that describe how to install an FW293R Ford Transit sliding door window.

Installation Notes: CRL Ford Transit 130/148"WB Passenger Side Sliding Door Vented Window (FW293R)

Typically, factory glass is installed the same as VWD and AMA bond-in windows, where they follow the factory stamp, rather than creating a template for a clamp ring type window. CRL's clamp-in cuthole requirements is a little narrower on the FW293R. If the factory window was installed first, then the CRL window will not install properly, leaving a gap in the top left corner.
